1800W Waterproof Brushless Motor Underwater IP65 Anti Korosi Motor DC BLDC
Kontak Person : Enya
Nomor telepon : 86-18988788151
Ada apa : +8618988788151
Kuantitas min Order : | 50 | Harga : | Negotiated The Price |
---|---|---|---|
Kemasan rincian : | 100 pcs per karton atau sebagai permintaan | Waktu pengiriman : | 10-12 hari kerja |
Syarat-syarat pembayaran : | T/T, L/C, D/P | Menyediakan kemampuan : | 13000PCS / bulan |
Tempat asal: | Shenzhen | Nama merek: | SECORE |
---|---|---|---|
Sertifikasi: | ISO9001, RoHS | Nomor model: | BLS-4537 |
Informasi Detail |
|||
Tegangan kerja: | 22.2V | nilai KV: | 400KV |
---|---|---|---|
Arus Maks: | 30A | Nilai daya: | 340W |
Ukuran motor: | 44.7*35mm | Torsi maksimum: | 1.1N.m |
Kekuatan penuh: | 900W | Aplikasi: | perangkat presisi, perkakas listrik, robotika |
Cahaya Tinggi: | 400KV Brushless Motor,Alat Listrik Presisi Motor Bldc,Motor BLDC Rotor Luar 22.2V |
Deskripsi Produk

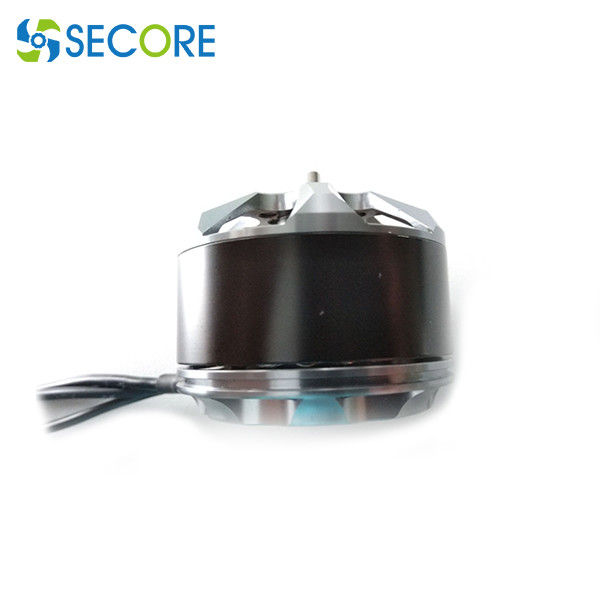

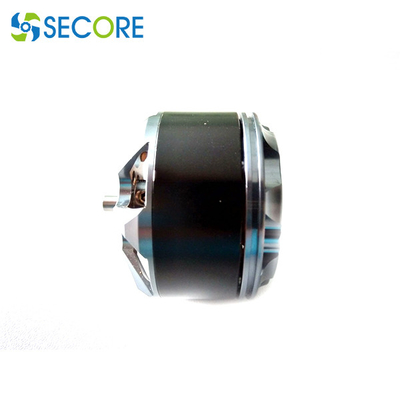

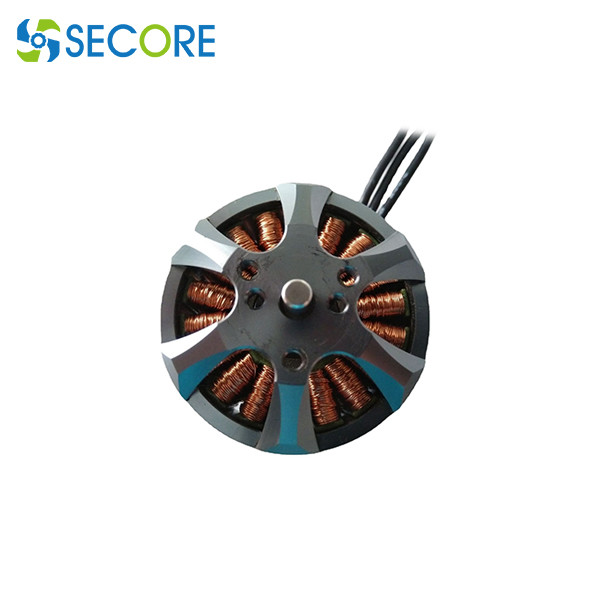

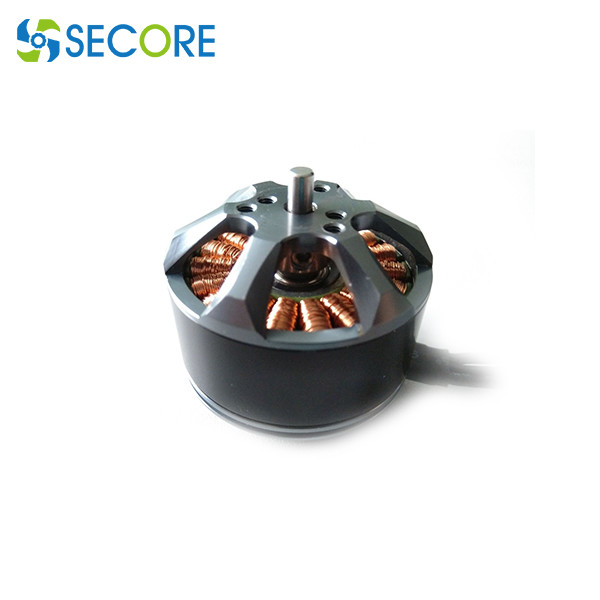

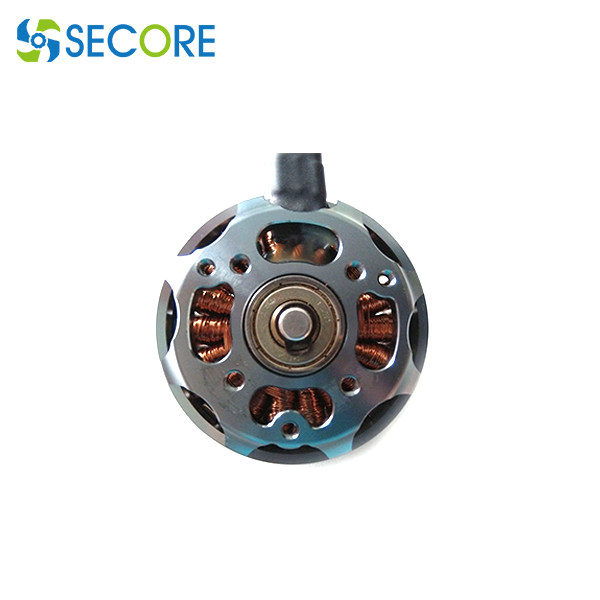

22.2V 400KV Brushless Motor Robotics Bldc Motor Untuk Alat Listrik Presisi
Secore outrunner bushless motor 4537 Parameter utama untuk referensi:
Nomor model | VOLTASE | KV | TANPA BEBAN | DENGAN EFISIENSI MAKSIMAL | Kios | Bobot | |||
Konstanta nominal | rpm/v | KECEPATAN | SAAT INI | KEKUASAAN | SAAT INI | TORSI | KEKUASAAN | ||
Volt | rpm/v | ±10% putaran/menit | mA | w | SEBUAH | Nm | W | kg | |
BLS-4537 | 22.2 | 400 | 8880 | 1330 | 340 | 30 | 1.1 | 900 | 0,15 |
BLS-4537 | 22.2 | 330 | 7330 | 1100 | 280 | 25 | 0.9 | 750 | 0,15 |
Gambar garis besar untuk model motor robot BLS-4537:
